Winning 3 WAY MIXING/DIVERTING VALVES(M/D) valves have internal port switching devices which automatically mix or divert fluids in proportion to temperature in any fluid based system. They come in brass and bronze housings, with port sizes from 1/2” to 1”. Adjustable and pre-calibrated models available. Special connections, configurations or materials also available for OEM requirements. Nominal operating temperatures from 20°C to 95°C.

Advantages

 * Brass body and thermal element

 * Narrow temperature band

 * Compact, low mass - Fast response

 * Sensitive to temperature only

Application

 * Solar water heating systems

 * Cooling water control-Radiator

 * Cooling water control-Heat Exchanger

 * Hydraulic fluid cooling systems

 * Direct cooling with raw water

 * Lube oil cooling control

 * Constant temperature baths, wash basins & sinks

 * Loop-type circulation systems

 * Direct injection water heating

 * Hot water washdown stations

 * Make-up water

 * Electric system cooling

 * Air conditioning

 * Water conservation

Operation

 "Winning" M/D temperature control valve is designed for 3-way mixing or diverting applications.

 For mixing applicatoins, the M/D valve will proportion the flow from two inlet ports to produce the desired outlet port temperature.

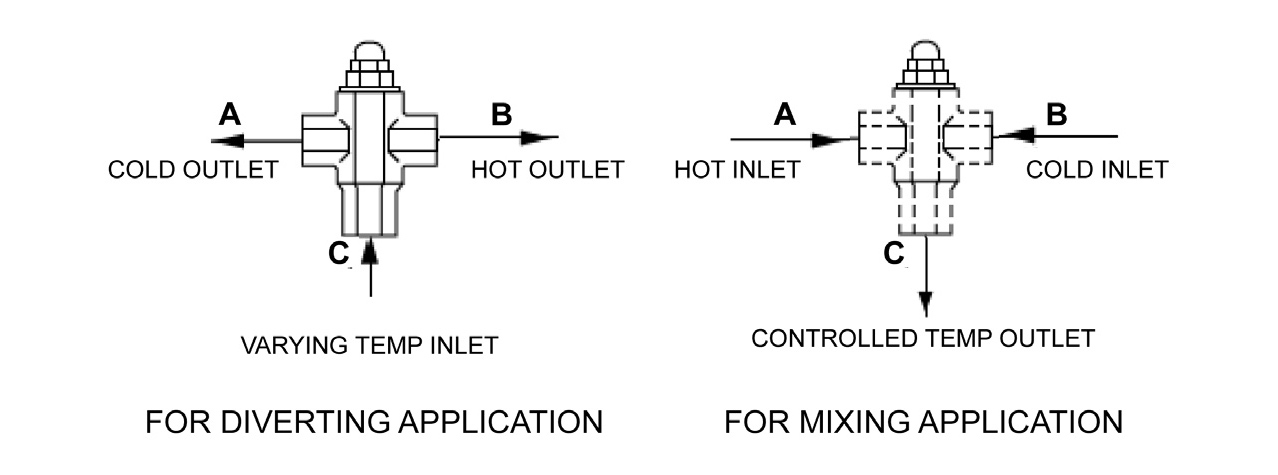

 For diverting applications, the M/D valve will divert or switch the inlet flow to either of two outlet ports depending on the fluid temperature.

Sample Applications

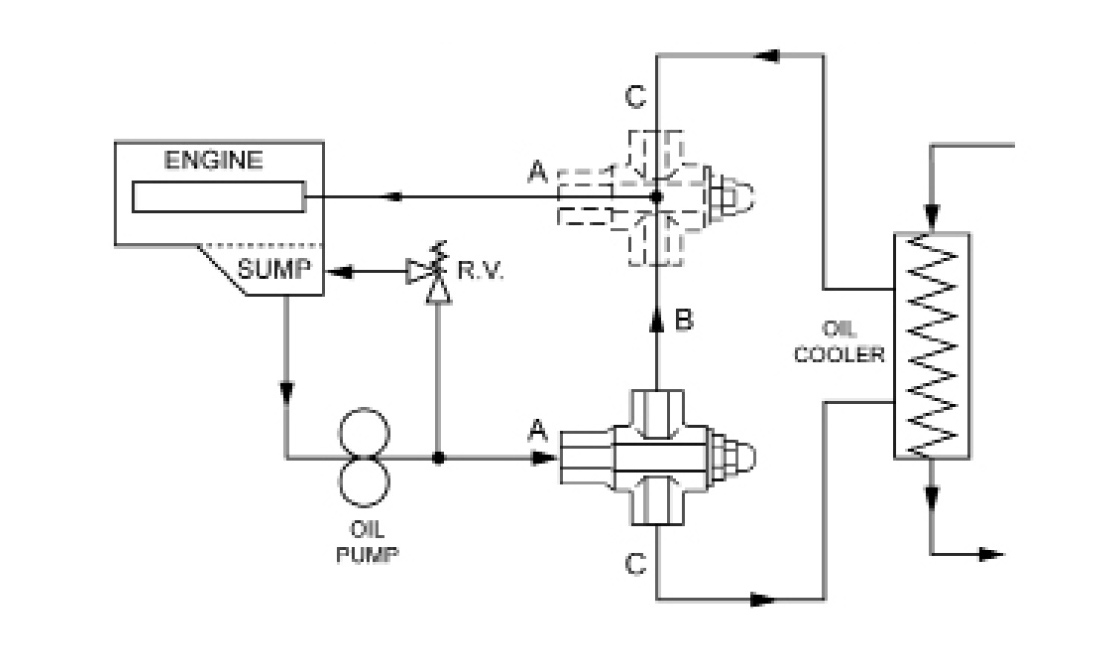

Lube Oil Control

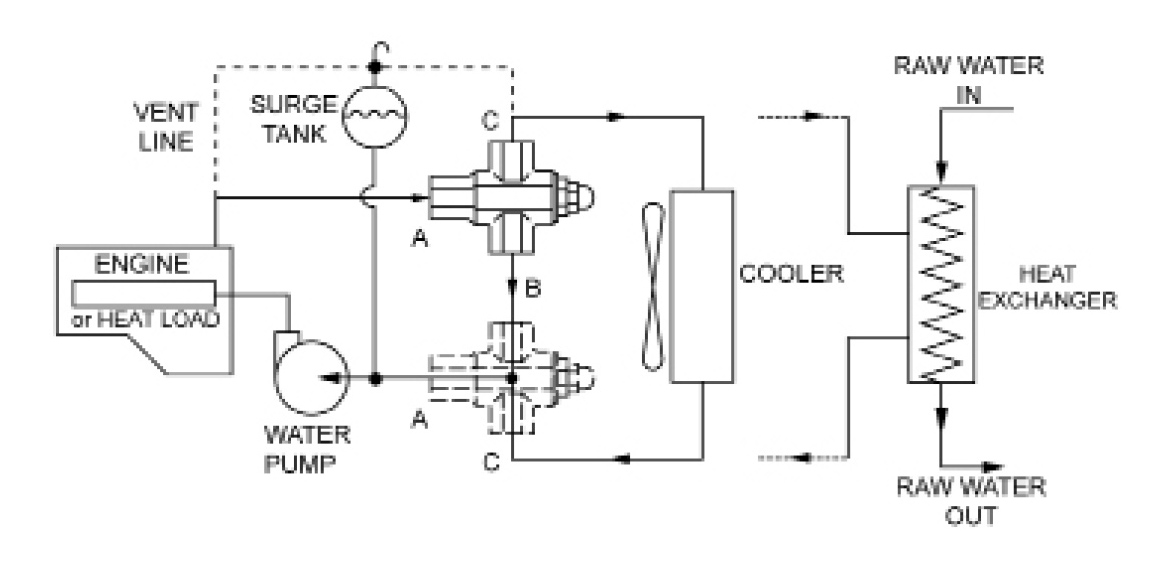

Cooling Water Control Using Radiator Or Heat Exchanger

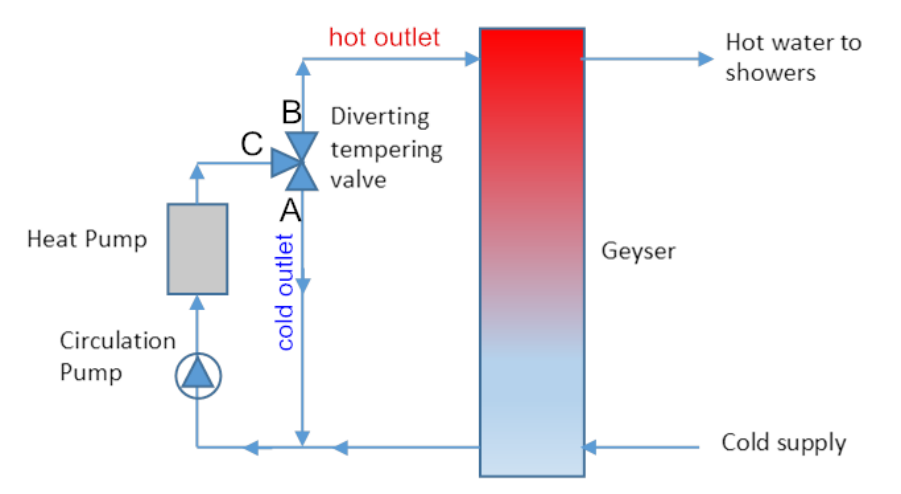

Multi-energies heating system

  When temperature of preheated water from solar tank is higher than 45 deg, the hot water port fully opened while the cold water port fully closed in the diverting valve. The hot water from diverter valve goes  into mixing valve together with cold water to form the desired temperature water for using point.

  When temperature of preheated water from solar tank is lower than 45 deg, the hot water port fully closed while the cold water port fully opened in the diverting valve. The cold water from diverter valve goes  boiler to be heated, then goes into mixing valve together with cold water to form the desired temperature water for using point.

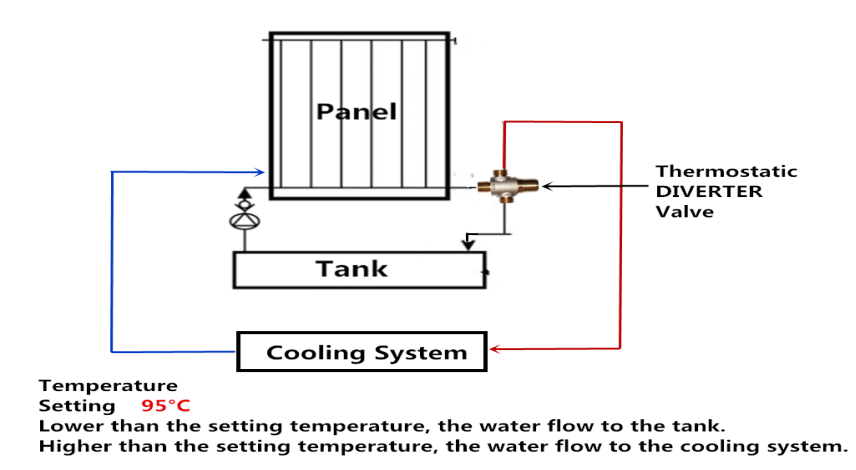

Solar overheating protection

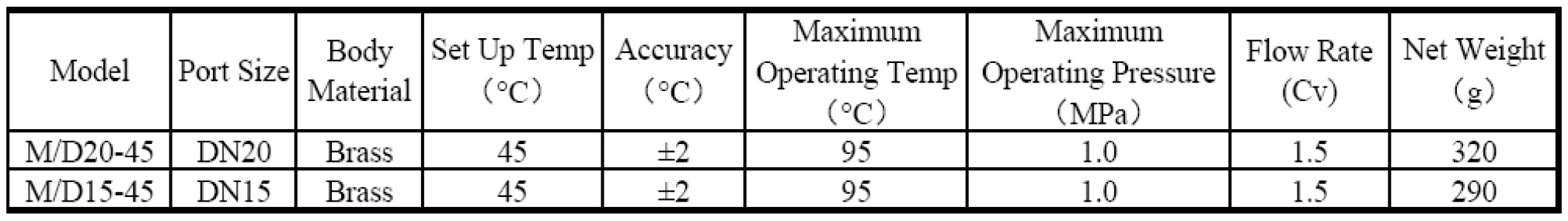

Notes

 *Other set up temperature available, please consult with us.

 *Unless noted, all set points listed have a +/-2 °C tolerance range. During operation, the valve will modulate the Cold side (A port) closed at 2 °C below the set point and the Hot side (B port) closed at 2 °C above the set point.
