* Brass body and thermal element

* Narrow temperature band

* Compact, low mass - Fast response

* Sensitive to temperature only

Application

* Solar water heating systems

* Cooling water control-Radiator

* Cooling water control-Heat Exchanger

* Hydraulic fluid cooling systems

* Direct cooling with raw water

* Lube oil cooling control

* Constant temperature baths, wash basins & sinks

* Loop-type circulation systems

* Direct injection water heating

* Hot water washdown stations

* Make-up water

* Electric system cooling

* Air conditioning

* Water conservation

Operation

"Winning" M/D temperature control valve is designed for 3-way mixing or diverting applications.

For mixing applicatoins, the M/D valve will proportion the flow from two inlet ports to produce the desired outlet prot temperature.

For diverting applications, the M/D valve will divert or switch the inlet flow to either of two outlet ports depending on the fluid temperature.

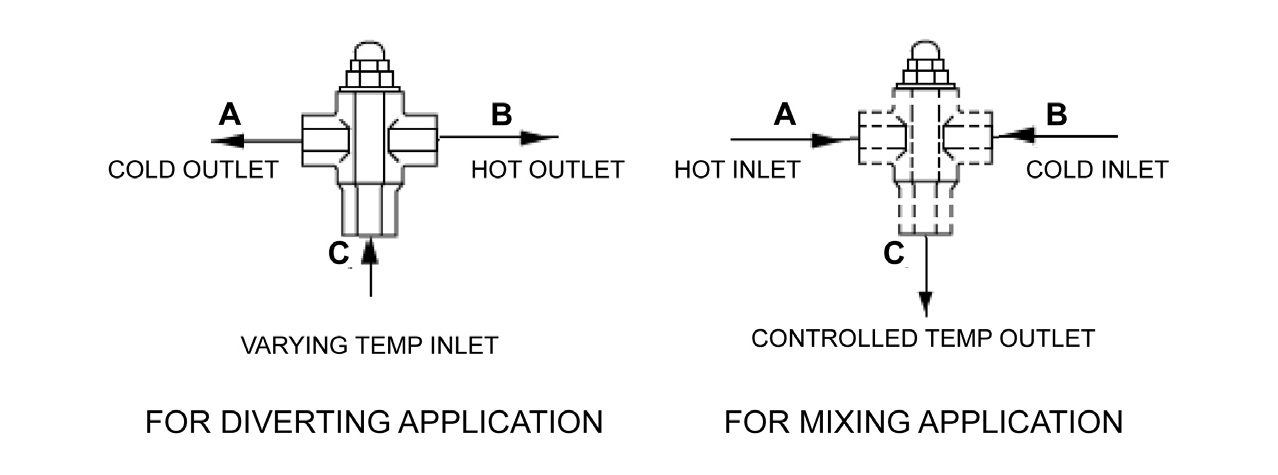

PLUMBING DIAGRAMS

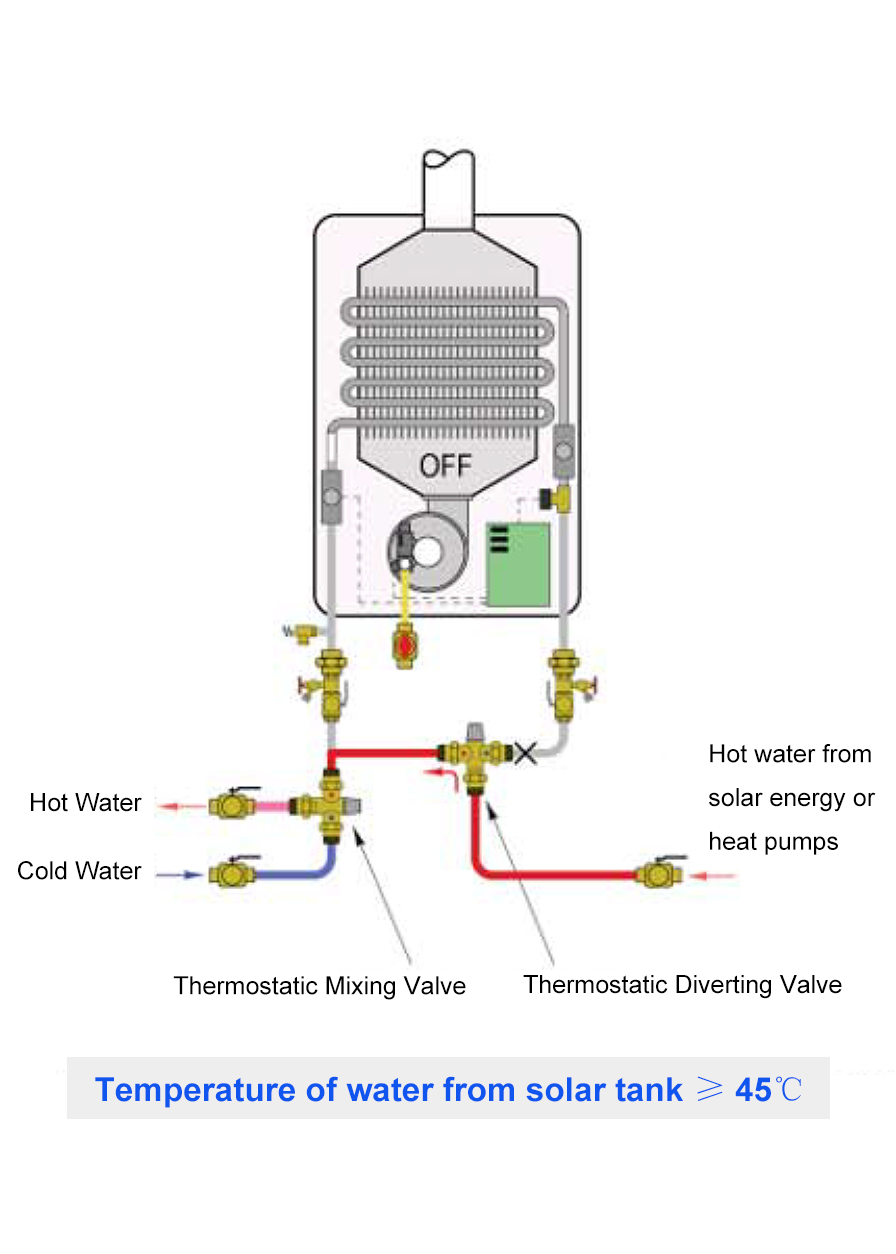

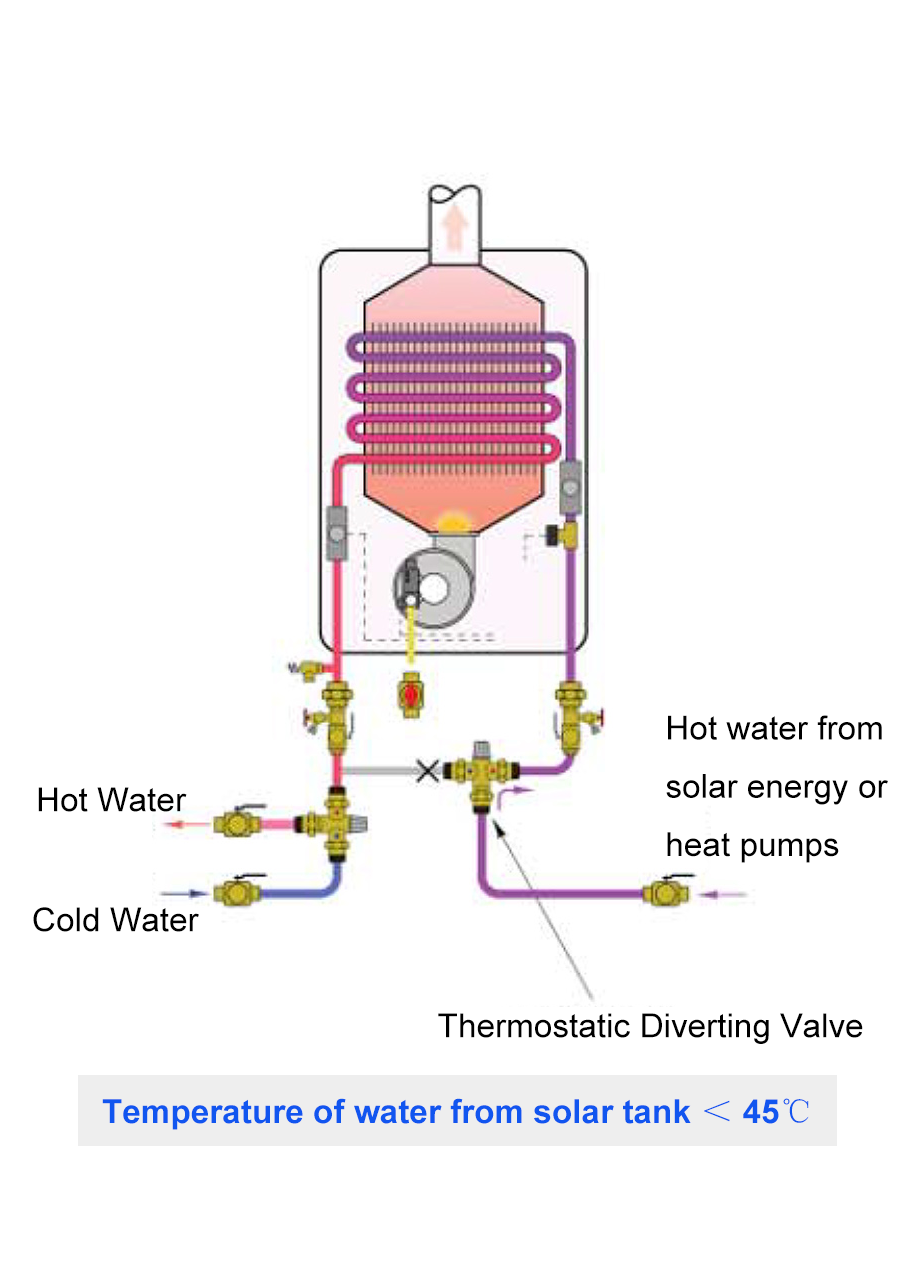

Multi-energies heating system

Notes

*Other set up temperature available, please consult with us.

*Unless noted, all set points listed have a +/-2 °C tolerance range. During operation, the valve will modulate the Cold side (A port) closed at 2 °C below the set point and the Hot side (B port) closed at 2 °C above the set point.
