Precision Thermal Control & Safety Solutions for Domestic Hot Water Zero Cold Water Systems: Instant Activation & Thermostatic Regulation
Engineered for instantaneous, storage, and hybrid water heating systems. Our solution leverages low-flow activation valves to ensure “instant hot water upon tap opening” and employs self-regulating mixing strategies to maintain constant outlet temperature, eliminating fluctuations.
Three Key Performance Bottlenecks in Residential Hot Water Circulation Systems
- Uneven Heating & Extended Wait Times: Conventional constant-flow or timer-based circulation methods fail to sense actual water temperature at each branch, forcing distant users to discharge cold water for prolonged periods while near-end users may experience overheating. This results in water waste and reduced comfort.
- Temperature Fluctuations: Variations in inlet water pressure or temperature swings from multi-source systems (e.g., solar + auxiliary heating) can cause scalding risks or unstable outlet temperatures.
- Inefficient Energy Loss: Pumps operating continuously or cycling frequently—even when water temperature has already reached the target—lead to increased pipe heat loss and unnecessary power consumption.
Our Comprehensive Valve Ecosystem Delivers Solutions

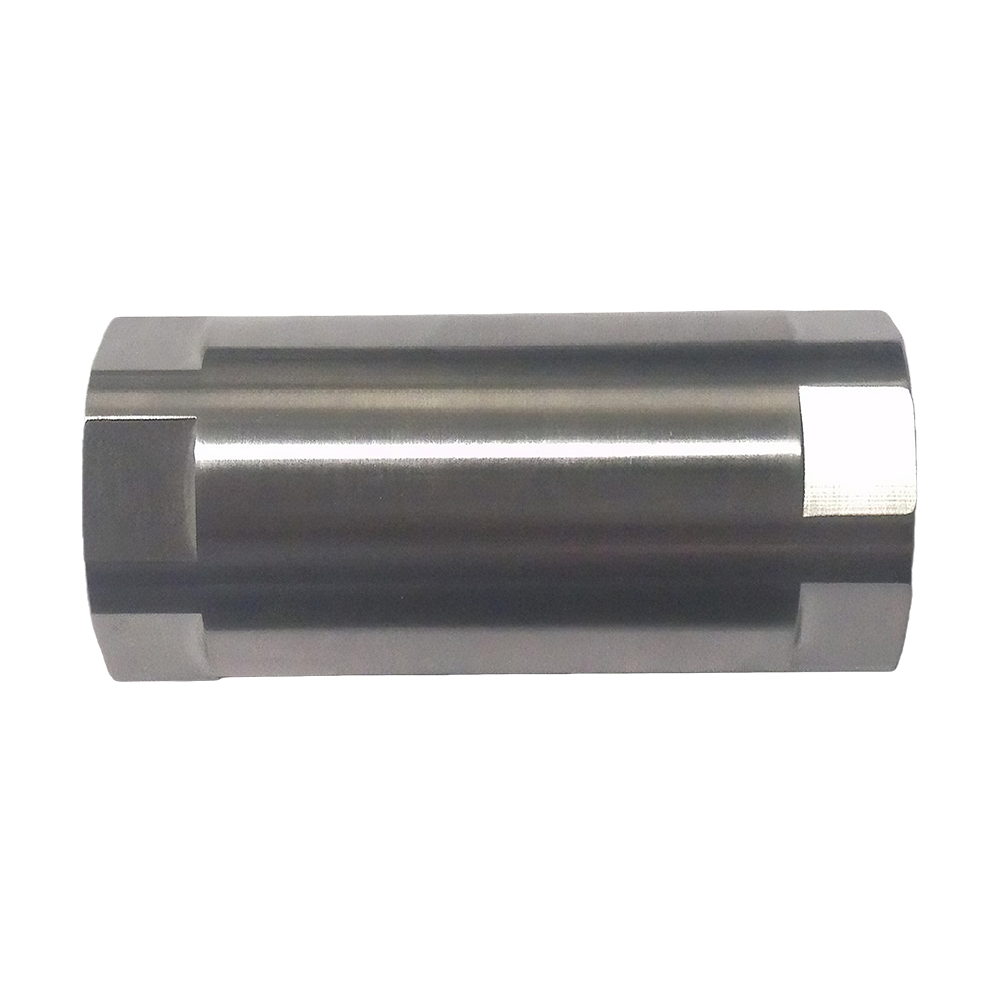

- Self-Acting Zero Cold Water Thermostatic Valve (FP15GD-LT & TCC Series): A purely mechanical intelligent flow-balancing valve requiring no external power. It automatically adjusts its opening based solely on water temperature, prioritizing hot water delivery to low-temperature branches and automatically blocking return flow once the target temperature is reached—achieving true “on-demand circulation” and “instant hot water.” Available in brass and stainless steel for diverse environmental requirements.

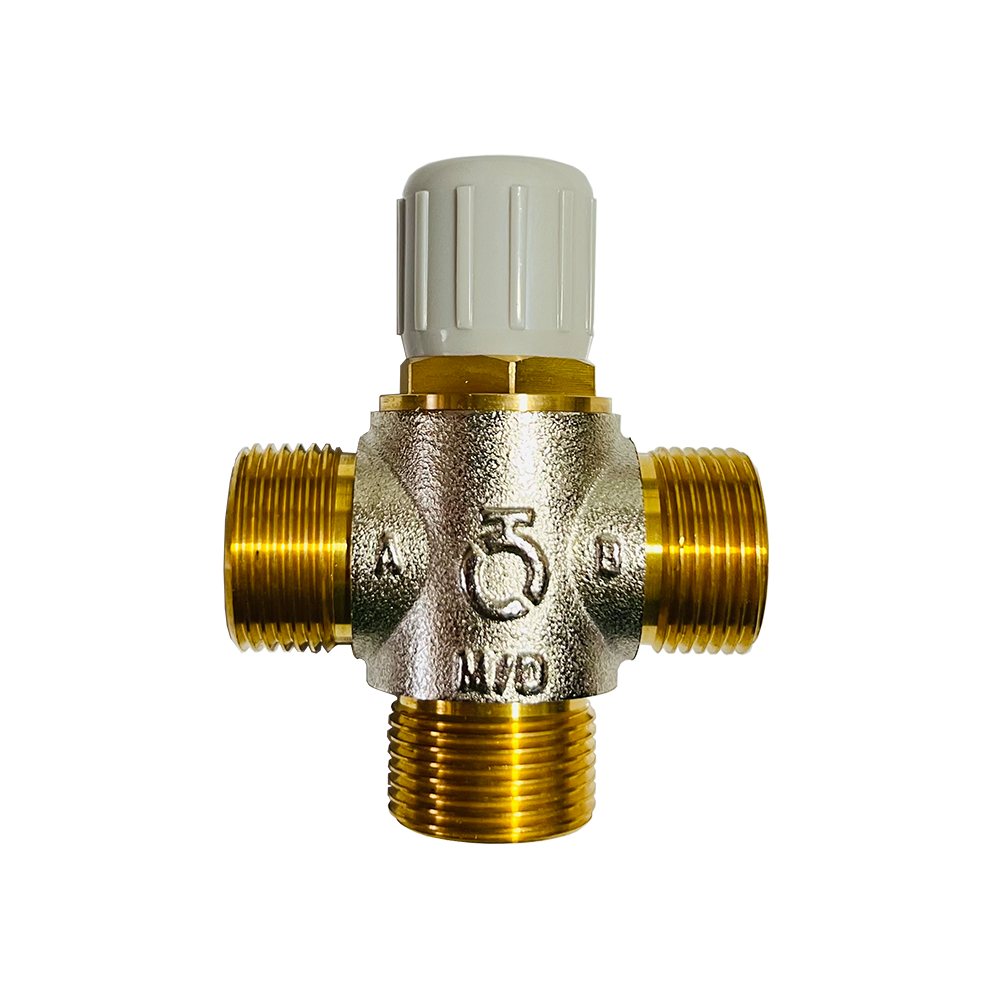

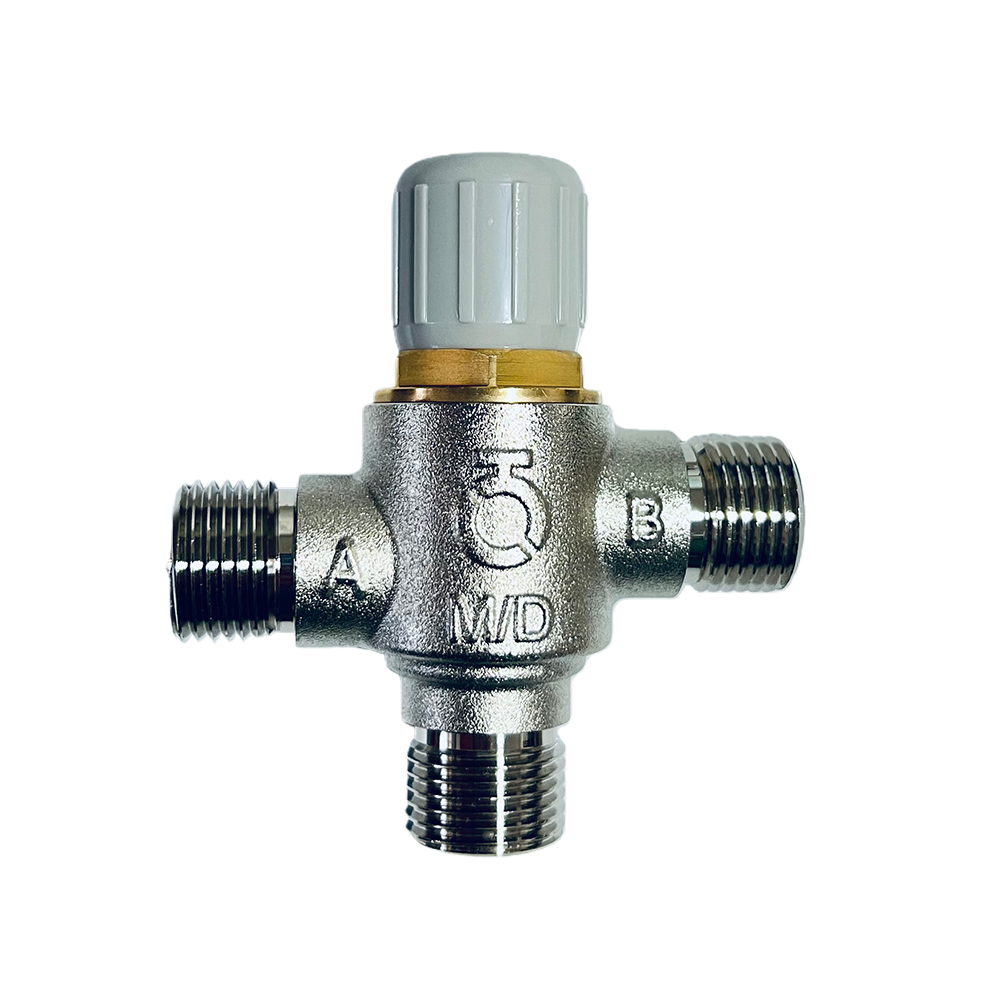

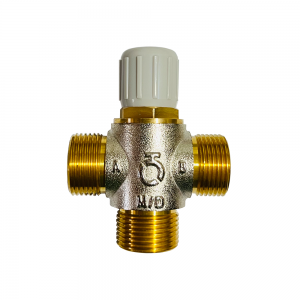

- Self-Acting Thermostatic Diverter Valve (MD Series): A self-operated three-way mixing/diverter valve that automatically balances water temperature between primary heat sources (solar preheat loops, heat pumps, etc.) and auxiliary sources (e.g., under-sink heaters), ensuring safety and comfort without external power.
- Zero Electricity, Pure Mechanical Reliability.
Self-Acting Instant Water Thermostatic Series
1. Product Function: Adaptive Flow Balancing & Thermostatic Control
Unlike conventional return valves reliant on electrical controls or fixed flow rates, our self-acting thermostatic valve operates based on the physical response of a high-precision temperature-sensing element to fluid temperature:
- Full Open at Low Temperature: When the valve detects water temperature below the setpoint, it automatically opens fully to maximize flow, rapidly raising the branch temperature.
- Shut-off at High Temperature: Once water temperature reaches or exceeds the setpoint, the valve automatically throttles down to minimal flow (or closes), preventing excess hot water from continuing through that branch and effectively avoiding hot water crossover into cold water lines.
- Dynamic Balancing: Flow blocked from one branch is automatically redirected to other low-temperature branches in the system that have not yet reached target temperature, ensuring all endpoints heat up quickly and simultaneously while ultimately maintaining thermal equilibrium across the entire network.
2. Operating Principle & Characteristics
The core of the FP15 Series lies in its self-acting temperature-sensing actuation mechanism, featuring:
- Zero-Energy Actuation: Entirely driven by the thermal expansion/contraction of the sensing bulb using the medium’s own heat—no electricity, batteries, or external signal wiring required.
- Pressure-Interference Resistance: Valve opening is determined solely by temperature, unaffected by system pressure fluctuations, ensuring stable and reliable operation.
- Automatic Reset: When branch water temperature drops due to water usage, the valve automatically reopens without manual intervention.
3. Application Scenarios

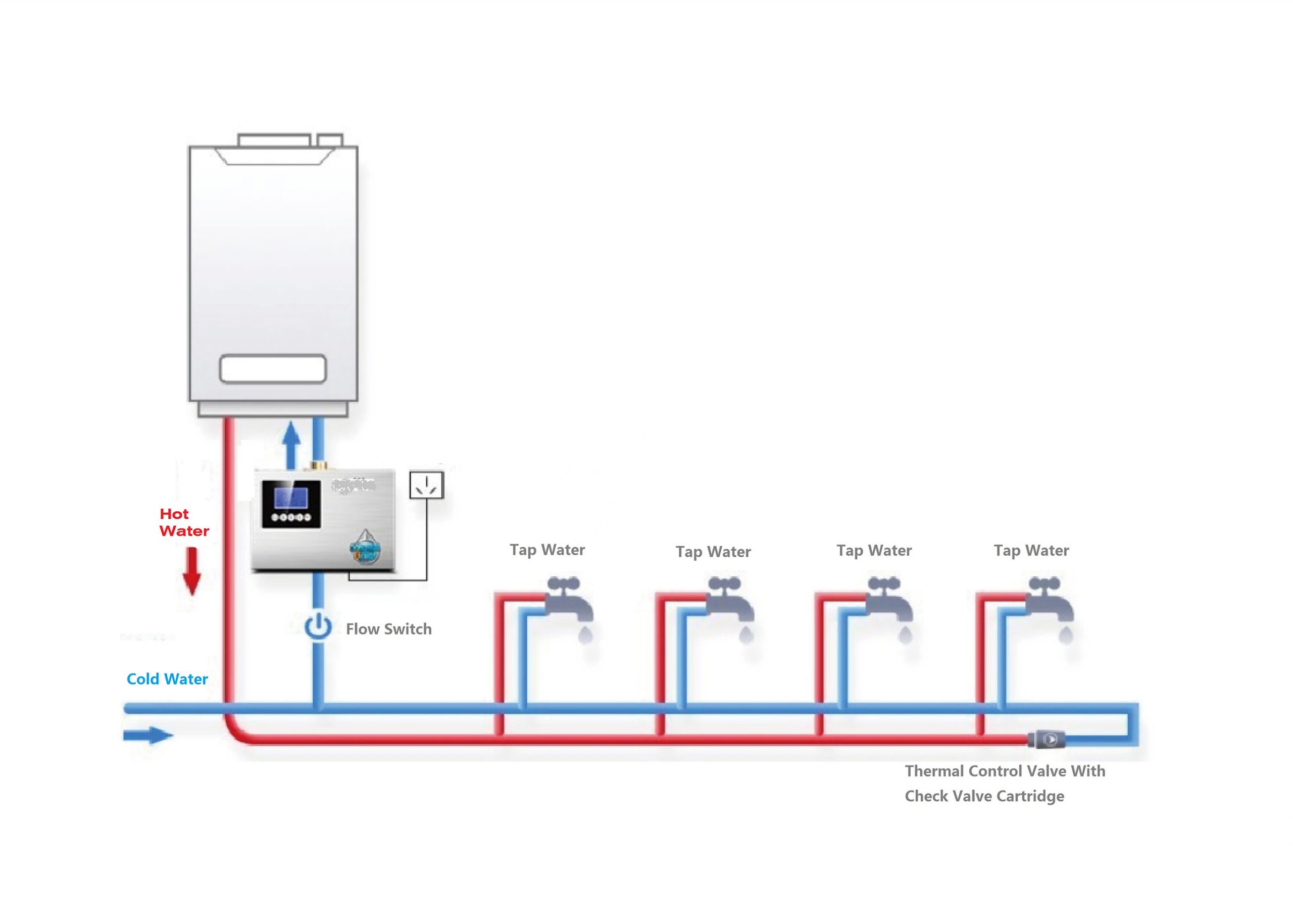

- Residential Zero Cold Water Systems: Installed at the return line of the farthest water fixture in large apartments or houses to solve the “cold water wait” problem before showering, significantly enhancing living comfort.
- Energy-Efficiency Retrofit Projects: Replaces existing solenoid valves or timer-based controllers, significantly reducing circulation pump runtime and gas/electricity consumption without the need for additional wiring.
When the water temperature flowing through the zero cold water thermostatic valve exceeds the setpoint, the valve closes rapidly, effectively preventing hot water crossover into the cold water piping. (The valve’s temperature is factory-set at 37°C or another specified value; custom temperature settings are available upon request.)
4. Core Advantages
- Ultimate Energy Efficiency: Circulation occurs only when heating is required and stops immediately once the target temperature is reached, significantly reducing pipe heat loss and pump power consumption.
- Easy Installation & Maintenance: No electrical wiring, no risk of electronic component failure, long service life, and maintenance-free operation.
- True Instant Hot Water: Through dynamic flow distribution, it ensures that water at the set temperature flows from the tap the moment it is opened, completely eliminating the “cold water slug.”
- System Self-Balancing: Automatically resolves hydraulic imbalance issues, eliminating the need for tedious manual hydraulic balancing commissioning.
Self-Acting Thermostatic Diverter Series
1. Product Function: Self-Acting Diverter Technology, A Upgrade Solution for Residential Zero Cold Water Systems
The MD Series 3-way diverter valve is specifically engineered to manage complex multi-source systems (e.g., solar preheating + gas/electric water heater, or heat pump + under-sink heater/backup boiler, etc.). The valve automatically directs cold and hot water flows to different paths (diverting) to maintain a constant set temperature.
2. Application Scenarios & System Logic
Scenario A: Auxiliary Heating Integration (Diverter Application)
- Background: Water temperature from solar loops or heat pumps fluctuates significantly.
- Function: If the water temperature is below the setpoint (e.g., 45°C), the valve diverts the flow to the auxiliary water heater for boosting, prioritizing the consumption of hot water stored in the auxiliary unit. If the water temperature exceeds the setpoint, it bypasses the auxiliary heater and flows directly to the point of use.
- Advantage: Maximizes the utilization of free energy sources (solar/heat pump) and only activates expensive backup fuel when absolutely necessary.

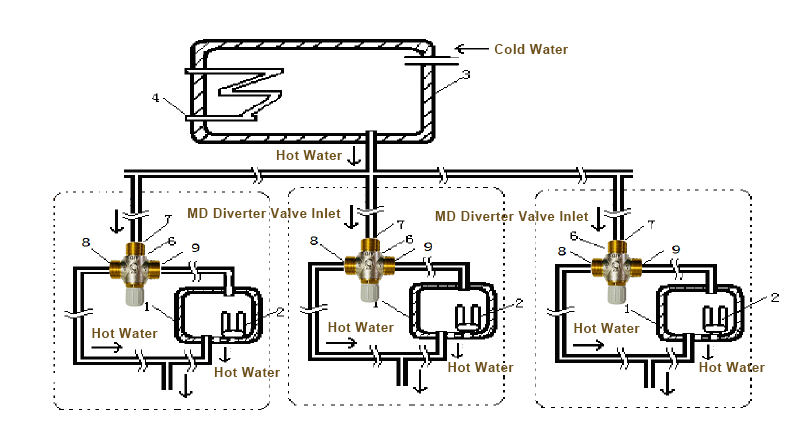

The figure below illustrates the installation schematic of the thermostatic diverter valve between the primary heat source and the under-sink heater, with the valve installed at the inlet of the under-sink heater.

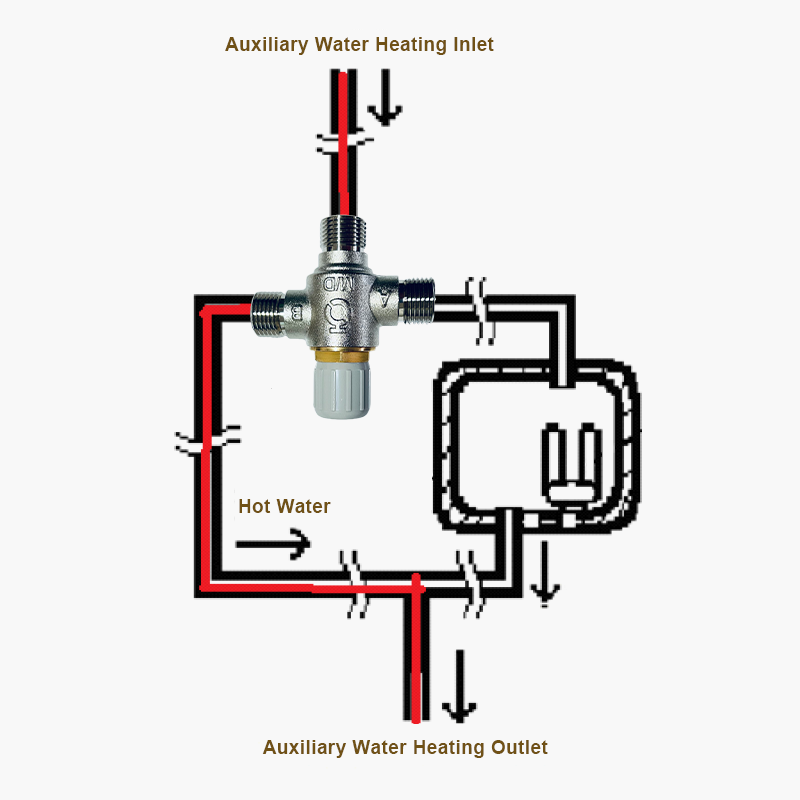

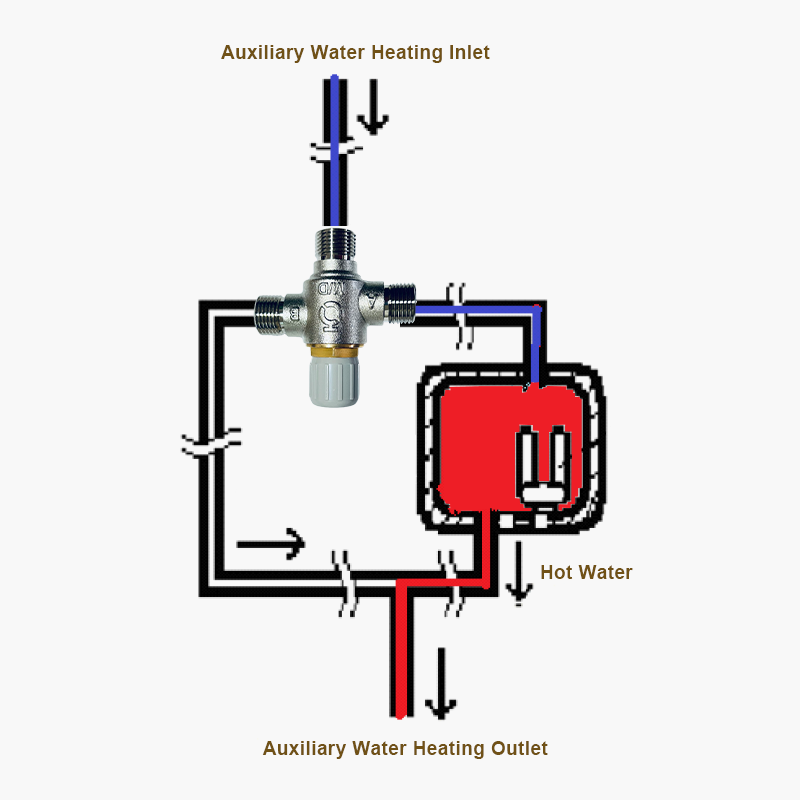

When the faucet is opened, the under-sink heater supplies hot water first, simultaneously purging the cold water from the hot water piping.
Once the cold water in the piping has been purged, the hot water supply is seamlessly taken over by the primary heat source.
This zero cold water upgrade solution eliminates the wait for hot water circulation. It removes the need for a hot water circulation pump, a temperature control valve for isolating hot and cold pipes, and a check valve—components typically required in conventional zero cold water systems. This significantly reduces initial installation costs and installation complexity, while effectively lowering system operating costs by more than 30%.
3. Core Advantages
- Energy Optimization: Intelligently manages flow distribution between primary energy (renewable) and secondary energy (fossil/electric) sources.
- Constant Temperature Output: Maintains the setpoint temperature within a ±2°C range, even with fluctuations in inlet water temperature or pressure.
- Flexible Configuration: Can be installed as a mixing valve (2 inlets, 1 outlet) or as a diverter valve (1 inlet, 2 outlets).
- Robust Construction: Brass valve body, engineered for high-frequency use in residential and commercial hot water systems.
Industry Applications
| Industry Sector | System Type | Recommended Solution | Core Value |
|---|---|---|---|
| Residential Real Estate | Instantaneous Gas/Electric Water Heaters | FP15GD-LT Series or TCC Series | Instant Hot Water |
| Hospitality & Healthcare | Large Central Hot Water Systems | TCC Series + MD Series | Sanitary-grade stainless steel ensures safety; precise temperature control prevents scalding of vulnerable populations. |
| Green Building / LEED | Solar Thermal + Backup Boiler | MD Series | Maximizes solar energy utilization through intelligent diversion; reduces carbon footprint. |
| Coastal / Industrial Environments | Water Heaters in Corrosive Environments | TCC Series | Superior corrosion resistance ensures long-term service life in environments where brass may degrade. |
| Multi-Family Apartments | Hot Water Circulation Loops | FP15GD-LT Series or TCC Series | Efficient loop control reduces pump energy consumption and water waste. |
Why Choose Our Zero Cold Water Solution?
- Dual-Material Strategy: Our zero cold water thermostatic valves are available in both brass (FP15GD-LT) and stainless steel (TCC Series), allowing you to optimize the balance between cost and corrosion resistance for each specific project.
- Seamless Hybrid Integration: Our MD Series bridges the gap between renewable preheat sources and conventional water heaters, creating smarter and more efficient hybrid systems.
- Zero-Energy Operation: All valves feature built-in temperature-sensing materials and are mechanically operated, reducing the electrical load on water heater control boards and eliminating the need for battery maintenance.
- OEM Ready: Compact design and flexible connections enable rapid and cost-effective integration into new water heater systems.
Technical Specifications
| Feature | FP15GD-LT | TCC Series | MD Series |
|---|---|---|---|
| Primary Function | Self-Acting Flow Balancing & Thermostatic Control | Self-Acting Flow Balancing & Thermostatic Control | Self-Acting Diverting / Mixing Temperature Control |
| Valve Body Material | Brass | Stainless Steel | Brass |
| Application Focus | Temperature Equalization & Energy Saving in Residential Hot Water Circulation Systems | Temperature Equalization & Energy Saving in Residential Hot Water Circulation Systems | Temperature Stabilization & Heat Source Switching |
| Operation Type | Thermal Circuit Control (Temperature-Sensing Actuation) | Thermal Circuit Control (Temperature-Sensing Actuation) | 3-Way Modulation |
| Power Source | None (Mechanical) | None (Mechanical) | None (Mechanical) |
| Temperature Range | Set Activation Temperature 30°C–37°C, 33°C–39°C, customizable upon request | Set Activation Temperature 30°C–37°C, 33°C–39°C, customizable upon request | Set Temperature 37°C±2°C, 45°C±2°C, customizable upon request |
| Connection Size | DN15 (1/2″) | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ | DN15, DN20 (1/2″, 3/4″) |
| Core Advantage | Zero Energy, Automatic Balancing, Instant Hot Water, Maintenance-Free | Zero Energy, Automatic Balancing, Instant Hot Water, Maintenance-Free, Corrosion Resistance | Pure Mechanical Construction, Fully Temperature-Controlled, Complete Diversion, Accurate恒温 |
Whether you require a corrosion-resistant zero cold water thermostatic valve or a thermostatic diverter solution for residential zero cold water upgrades, we have mature “self-acting thermostatic valve” solutions ready for you.
Download the technical manual and configure samples for your next OEM project.
