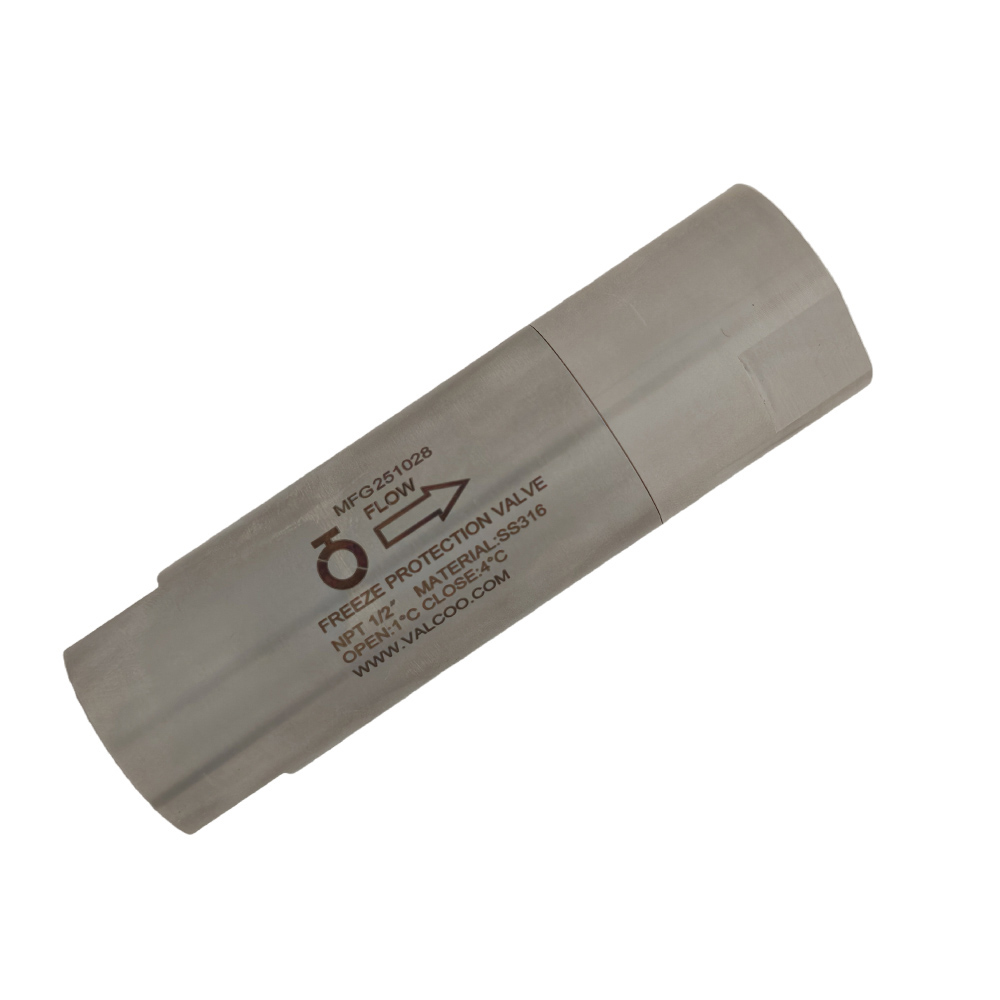

FP68 Freeze Protection Valve
$178.00

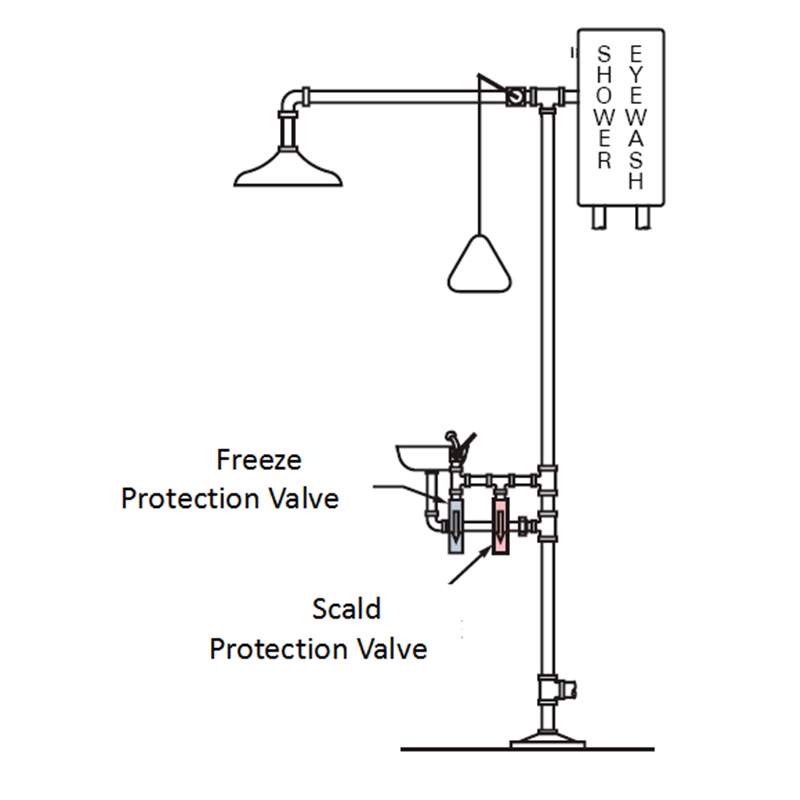

Stainless Steel 316 Freeze Protection Valve for Emergency Showers & Eye Wash Systems – Thermostatic, Automatic Drain at 1–4°C, Corrosion-Resistant
Description
Application
Design Features
* Stainless body and thermal element
* Narrow temperature band
* Compact, low mass – Fast response

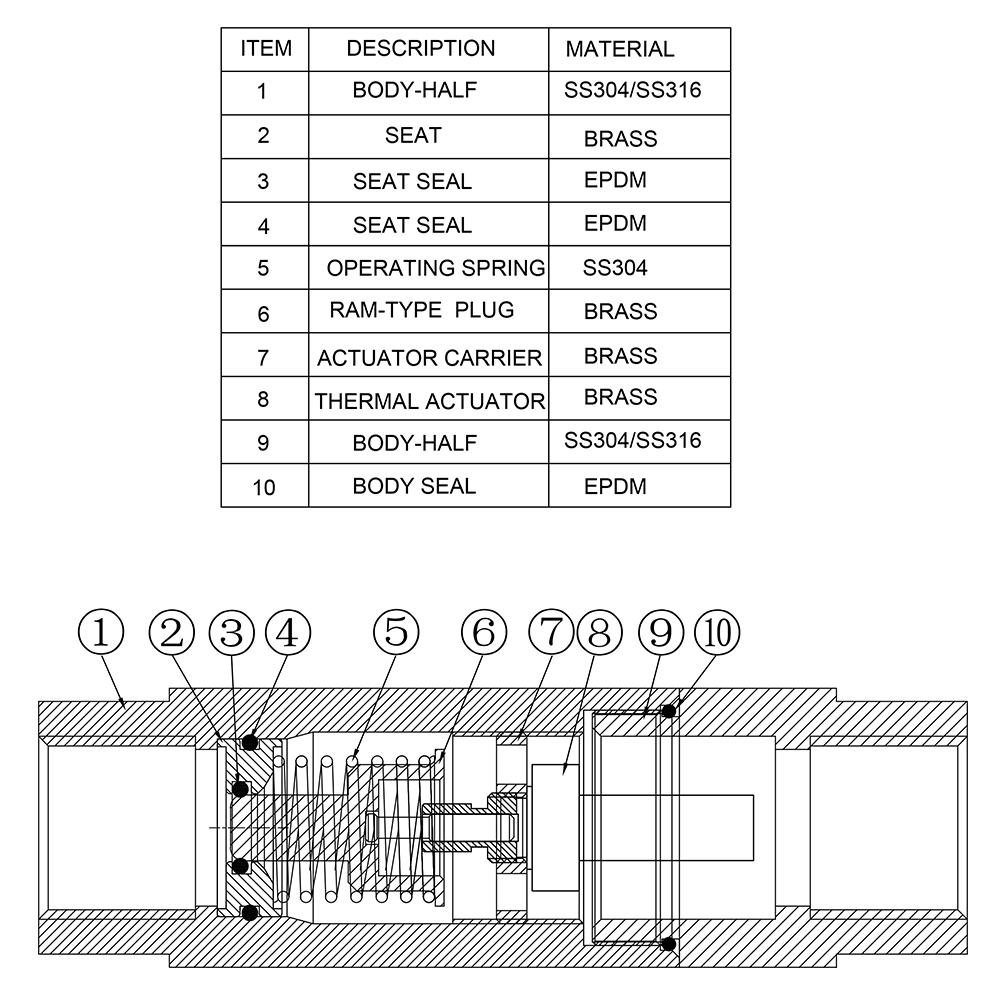

* Ram-type plug for reliable tight shut off
* Sensitive to temperature only
* Unaffected by pressure variations
* Easy installation with pipe wrench
* Discharges the minimum amount of water required to prevent freeze damage
Operation
A thermostatic element inside the valve senses temperature and if this falls below 35°F (1.7°C) the valve modulates open allowing water to flow. The valve will remain open as long as the water flowing by the sensor is less than 40°F (4.4 C). However, when the water flowing by the sensor becomes greater than 40°F (4.4°C) , the valve will close.
Specifications
| Product Name | Freeze Protection Valve |
|---|---|
| Model | FP68-35 |
| Port Size | 1/2” Female |
| Body Material | SS316 |
| Open/Close Temp(℃) | 1~4 |
| Brand Name | Winning |
| Maximum Temp(℃) | +120 |
| Maximum Pressure(MPa) | 1.0 |
| Flow Rate(Cv) | 0.6 |

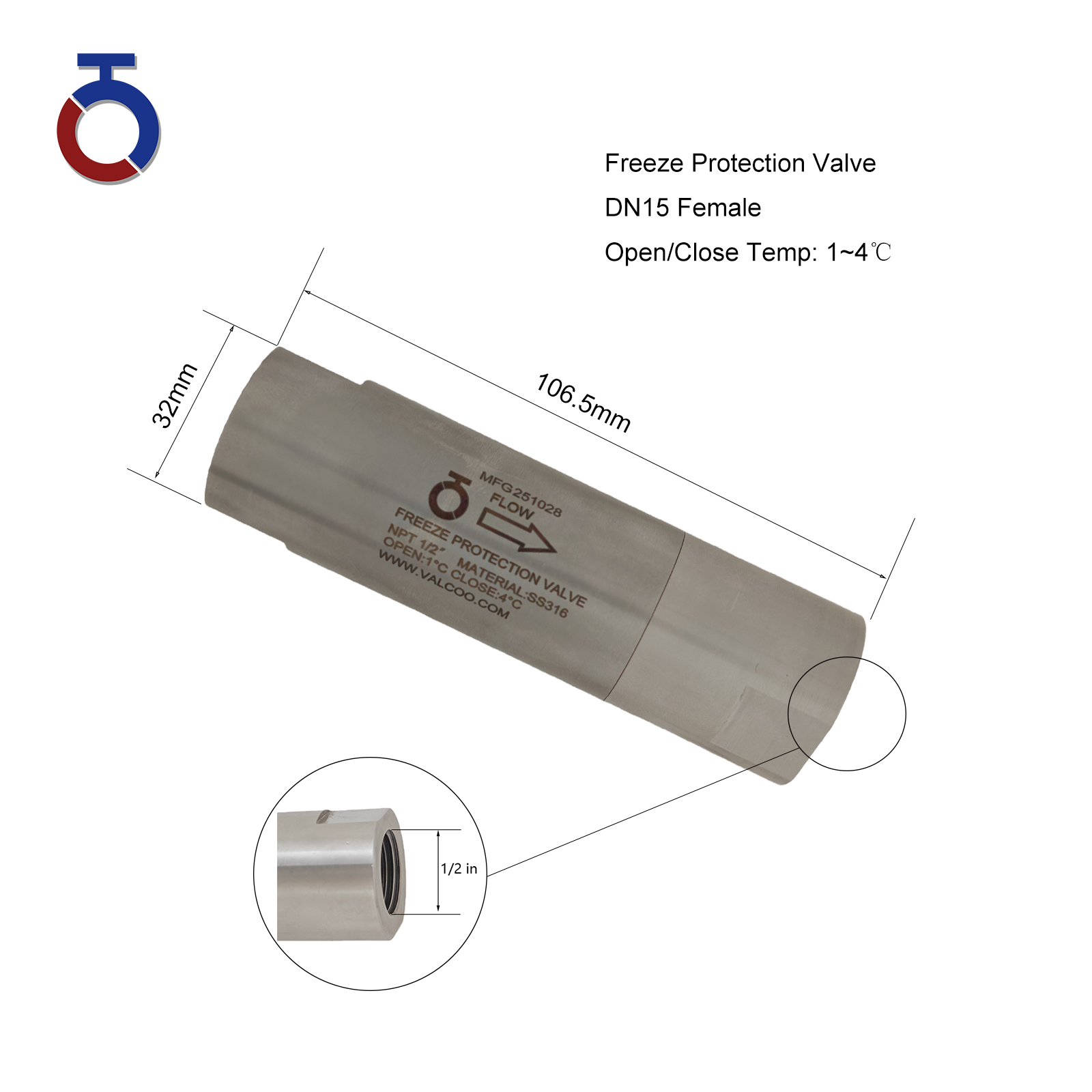

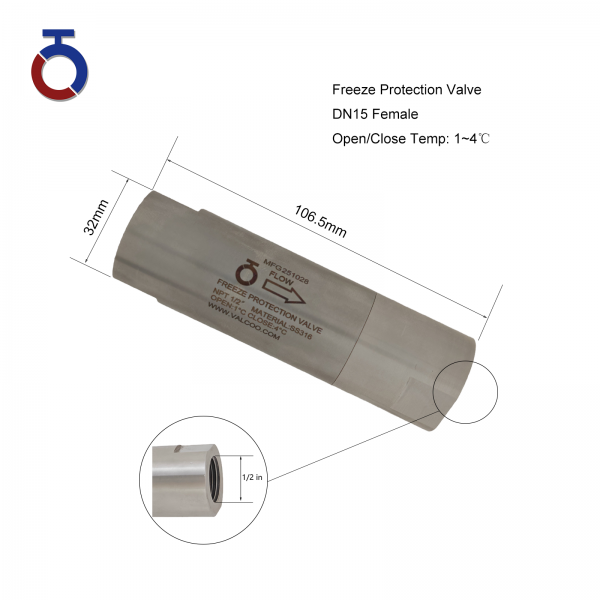

| Dimensions(mm) | φ32*107 |
| Net Weight(g) | 434.9 |
Notes
1. Seal material: EPDM, Viton available.
2. All FPV valves are covered by 12 months warranty.
3. A #20 mesh strainer is recommended.
Additional information
| Material | SS316 |
|---|---|
| Weight(g) | 434.9g |
| Port Size | 1/2'' Female |
